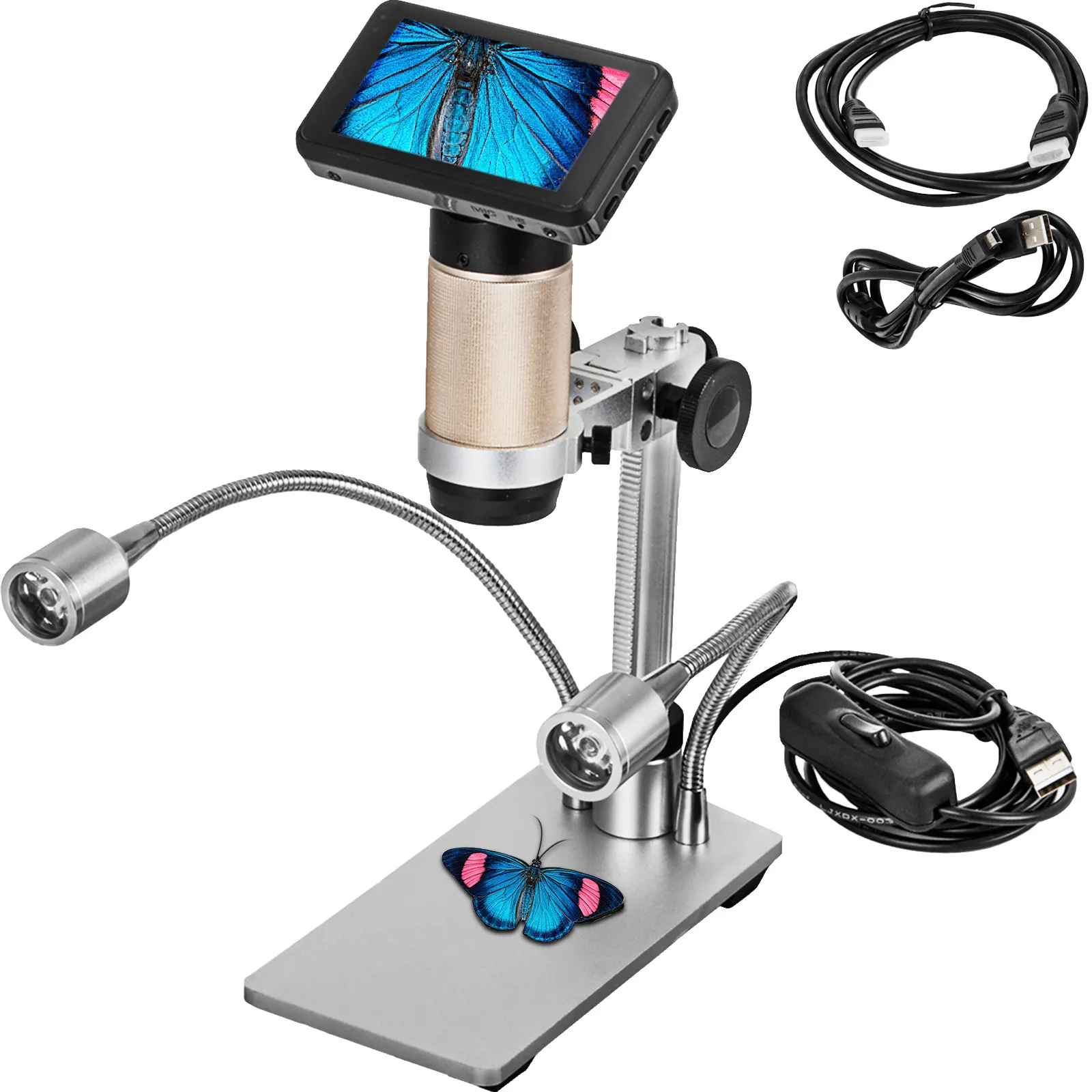

Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p
Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p
Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p
Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p
Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p
Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p
+7
More
Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p
Hdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080pHdmi Digital Microscope For Pcb Repair Adsm201 3mp 10x-300x Magnification 1080p

Features & Details

  • 【300X MAGNIFICATION】 - With the 7-inch LCD screen and 300X magnification, the HDMI digital microscope allows you to see all your observations in detail instantly. It supports picture capture and video recording with a 1080P resolution.
  • 【PROFESSIONAL CAMERA】 - The digital microscope camera comes with the exclusive optical glass lens and two LED lights, focusing light on the view field even in a lousy light source. Its CMOS image sensor provides a 4X digital zoom with high sensitivity.
  • 【VARIOUS OUTPUT METHODS】 - Our digital microscope, designed with USB and HDMI two video outputs, provides a high-definition video output interface. It can be connected to a PC or other display screen for a larger display and close observation.
  • 【FOCUS & OBJECT DISTANCE】 - For different observation subjects, you can adjust focus distance with the focus controller to obtain the most precise image. The digital microscope HDMI also has the height controller on both sides for the object distance adjustment.
  • 【WIDE APPLICATION】 - This digital microscope kit is perfect for circuit board soldering repair, mobile/phone maintenance, coin grading, QC inspection, educational research, industrial inspection, jewelry and stamp collection, laboratory, etc.

About this item

Product specification
Magnification Ratio
10X-300X
Power Source
5V DC
Image Sensor
3 Mega Pixels
Video Output
1080P Full HD
Video Format
MOV
Photo Format
JPEG
Frame Rate
Max 30f/s under 600 Lumens brightness
Focus Range
Manual Focus 10-500 mm/0.4"-19.7"
Video-Output Interface
HDMI, to any monitor with HDMI-In
Storage
Micro SD card, up to 32G (Not include)
Working Distance
4-15 cm/1.6"-5.9"
Metal Stand Size
8x14.5 cm/3.15"x5.7"
Weight
1.2 kg/2.7 lbs
Description
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
HDMI Digital Microscope
Professional digital microscope supports 300X magnification, 4X digital zoom, and 1080P HD resolution (HDMI Output)/720P (USB Output), helping you see and observe the tiny object. The digital microscope USB features a 7-inch LCD screen and CMOS image sensor, allowing picture capture and video recording. With the excellent performance, this digital microscope camera USB is widely used for PCB soldering repair, insect observation, jewelry identification, etc.
  • 300X Magnification
  • Professional Camera
  • Various Output Methods
  • Focus & Object Distance

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7-Inch LCD Screen
The digital HDMI microscope features a 7" LCD, 300X magnification, and 1080P output, ensuring the high-definition image and video for clear watching.
Optical Glass Lens
With an optical glass lens and advanced CMOS image sensor, the digital microscope HD provides a 4X digital zoom and wide spectral response range.
Connect to Computer/HDMI Display
The LCD digital microscope can be connected to a PC or other HDMI display devices. You can watch the specimen image or live video on a larger screen with more people.
Two LED Lights
Our digital microscope with stand is equipped with two bright LED goose-neck lights on both sides, which provide light sources when used in dark places.
Adjustable Metal Stand
This digital microscope stand is height adjustable with a working distance of 4-15 cm/1.57"-5.91", offering you variable magnification for different needs.
Extensively Used
This digital microscope LCD is widely used for the electric industry, insect observation, scientific research, jewelry identification, and textile industry.
Specifications
  • Magnification Ratio: 10X-300X
  • Power Source: 5V DC
  • Image Sensor: 3 Mega Pixels
  • Video Output: 1080P Full HD
  • Video Format: MOV
  • Photo Format: JPEG
  • Frame Rate: Max 30f/s under 600 Lumens brightness
  • Focus Range: Manual Focus 10-500 mm/0.4"-19.7"
  • Video-Output Interface: HDMI, to any monitor with HDMI-In
  • Storage: Micro SD card, up to 32G (Not include)
  • Working Distance: 4-15 cm/1.6"-5.9"
  • Metal Stand Size: 8x14.5 cm/3.15"x5.7"
  • Weight: 1.2 kg/2.7 lbs
Package Content
  • 1 x Digital Microscope Host
  • 1 x Metal Base Stand with 2 LED Lights
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 1 x Adapter
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
HDMI Digital Microscope
Professional digital microscope supports 300X magnification, 4X digital zoom, and 1080P HD resolution (HDMI Output)/720P (USB Output), helping you see and observe the tiny object. The digital microscope USB features a 7-inch LCD screen and CMOS image sensor, allowing picture capture and video recording. With the excellent performance, this digital microscope camera USB is widely used for PCB soldering repair, insect observation, jewelry identification, etc.
  • 300X Magnification
  • Professional Camera
  • Various Output Methods
  • Focus & Object Distance
7-Inch LCD Screen
The digital HDMI microscope features a 7" LCD, 300X magnification, and 1080P output, ensuring the high-definition image and video for clear watching.
Optical Glass Lens
With an optical glass lens and advanced CMOS image sensor, the digital microscope HD provides a 4X digital zoom and wide spectral response range.
Connect to Computer/HDMI Display
The LCD digital microscope can be connected to a PC or other HDMI display devices. You can watch the specimen image or live video on a larger screen with more people.
Two LED Lights
Our digital microscope with stand is equipped with two bright LED goose-neck lights on both sides, which provide light sources when used in dark places.
Adjustable Metal Stand
This digital microscope stand is height adjustable with a working distance of 4-15 cm/1.57"-5.91", offering you variable magnification for different needs.
Extensively Used
This digital microscope LCD is widely used for the electric industry, insect observation, scientific research, jewelry identification, and textile industry.
Package Content
  • 1 x Digital Microscope Host
  • 1 x Metal Base Stand with 2 LED Lights
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 1 x Adapter
Specifications
  • Magnification Ratio: 10X-300X
  • Power Source: 5V DC
  • Image Sensor: 3 Mega Pixels
  • Video Output: 1080P Full HD
  • Video Format: MOV
  • Photo Format: JPEG
  • Frame Rate: Max 30f/s under 600 Lumens brightness
  • Focus Range: Manual Focus 10-500 mm/0.4"-19.7"
  • Video-Output Interface: HDMI, to any monitor with HDMI-In
  • Storage: Micro SD card, up to 32G (Not include)
  • Working Distance: 4-15 cm/1.6"-5.9"
  • Metal Stand Size: 8x14.5 cm/3.15"x5.7"
  • Weight: 1.2 kg/2.7 lbs
